MOA Snowcat V2

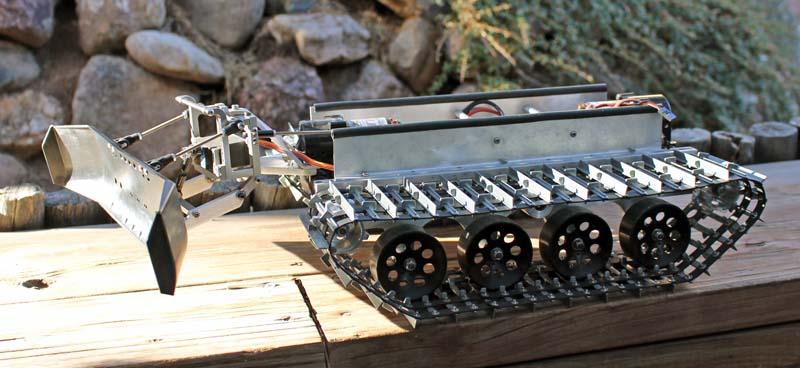

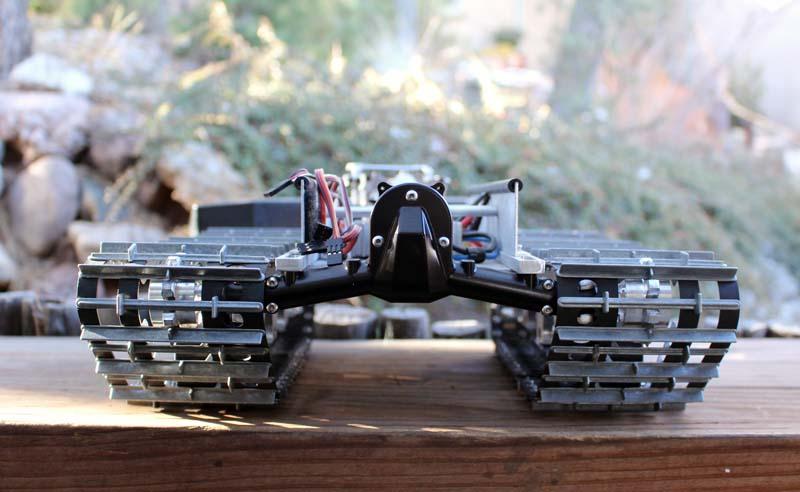

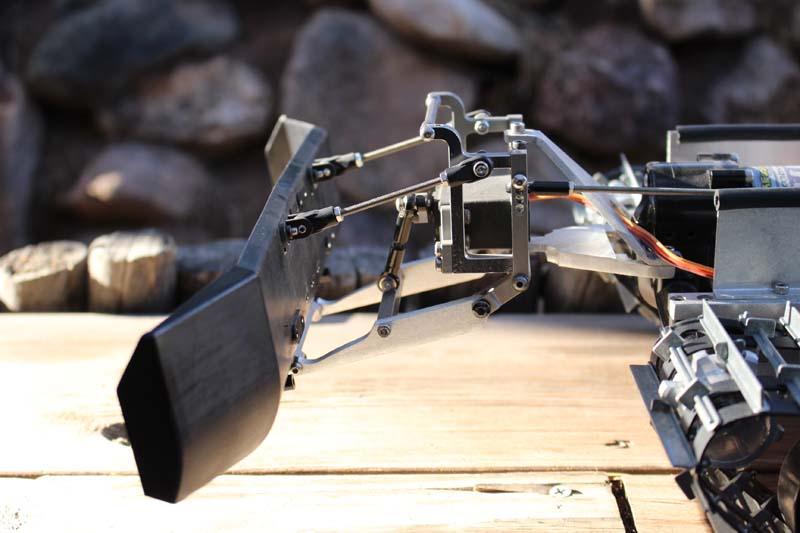

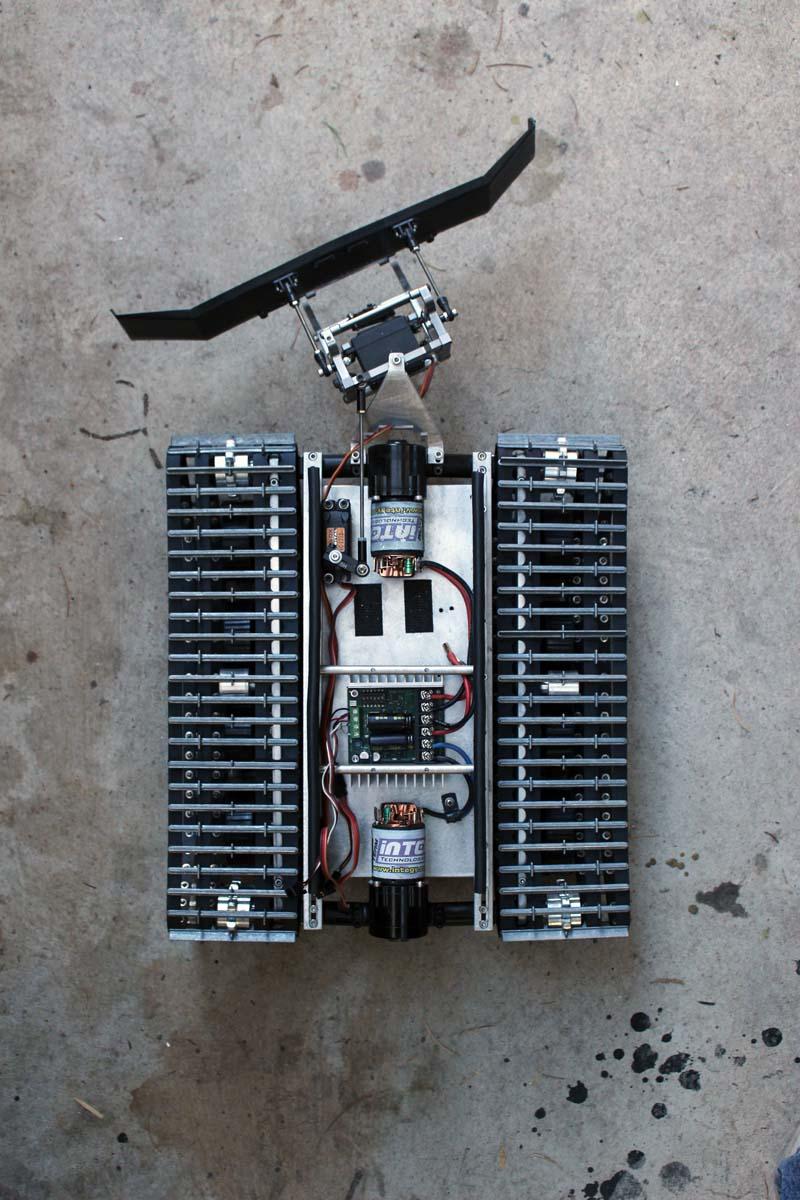

Decided to build a highboy MOA style snowcat chassis. I used 2 RC4WD Worminator rear straight axles. Motors are Integy 45T, powered by a Sabertooth 2x25 esc. Aluminum track drive sprockets are mounted on pin drive adapters. To adjust the track tension you loosen the 2 rear frame rail screws and the one wheel plate screw under the tracks and slide the rear axle back. The blade assembly moves up & down, as well as side to side. I modified a RC4WD plow assembly and use a Crawford Engineering servo for the up/down movement, then made a mount controlled by a Savox low profile servo for the side to side movement thats mounted on the chassis. Stock Kyosho plastic wheels and metal tracks are used.
