Tall Boy V2 4 wheel drive update

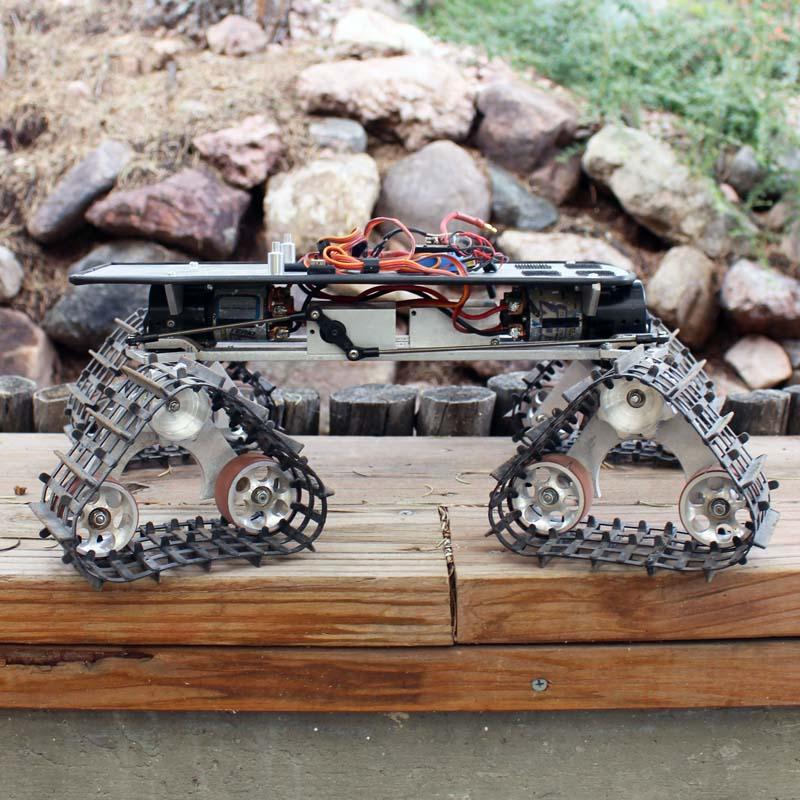

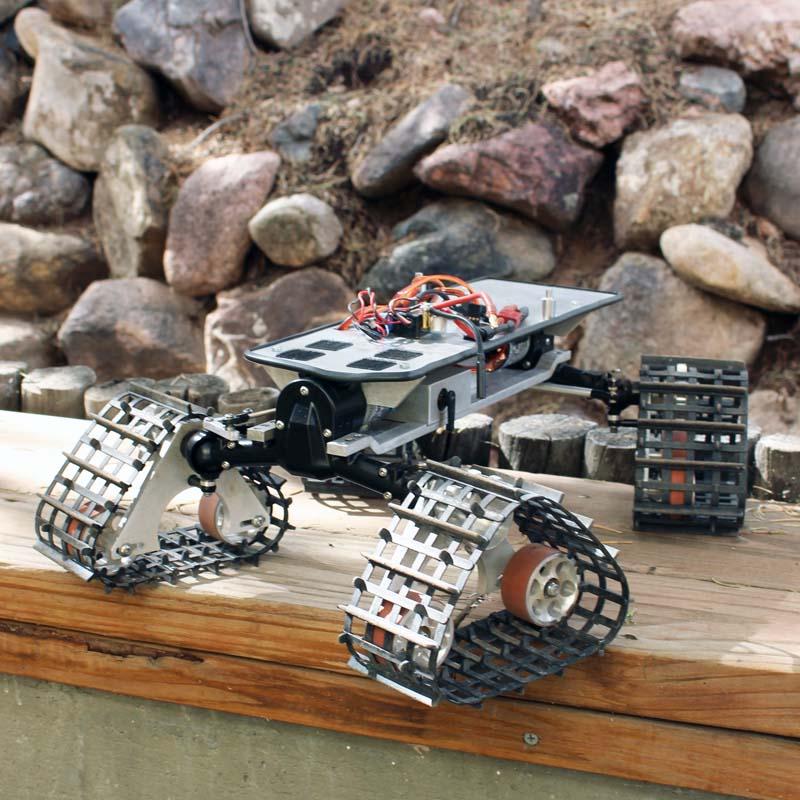

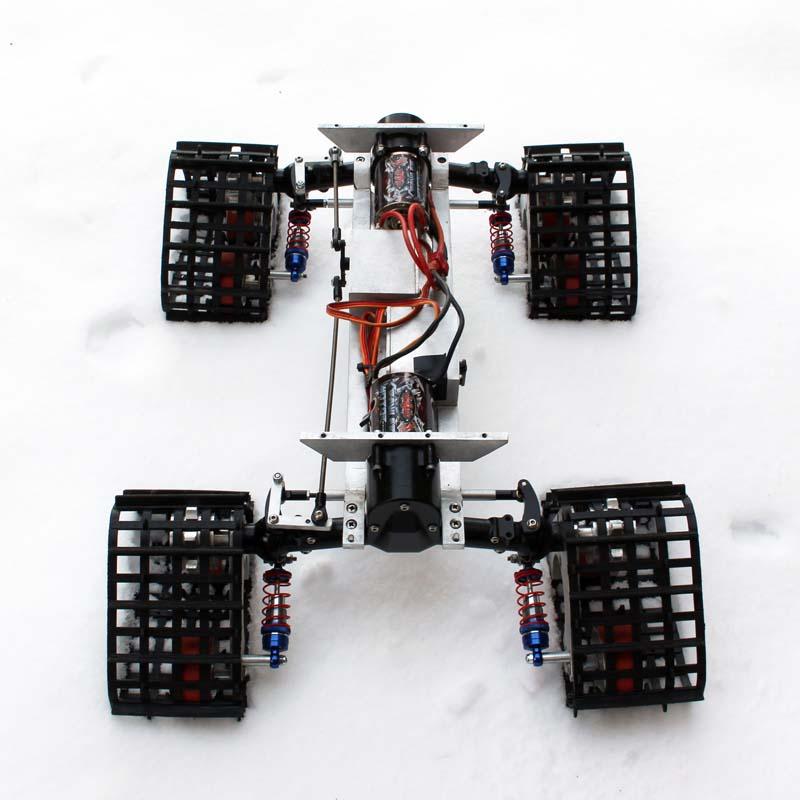

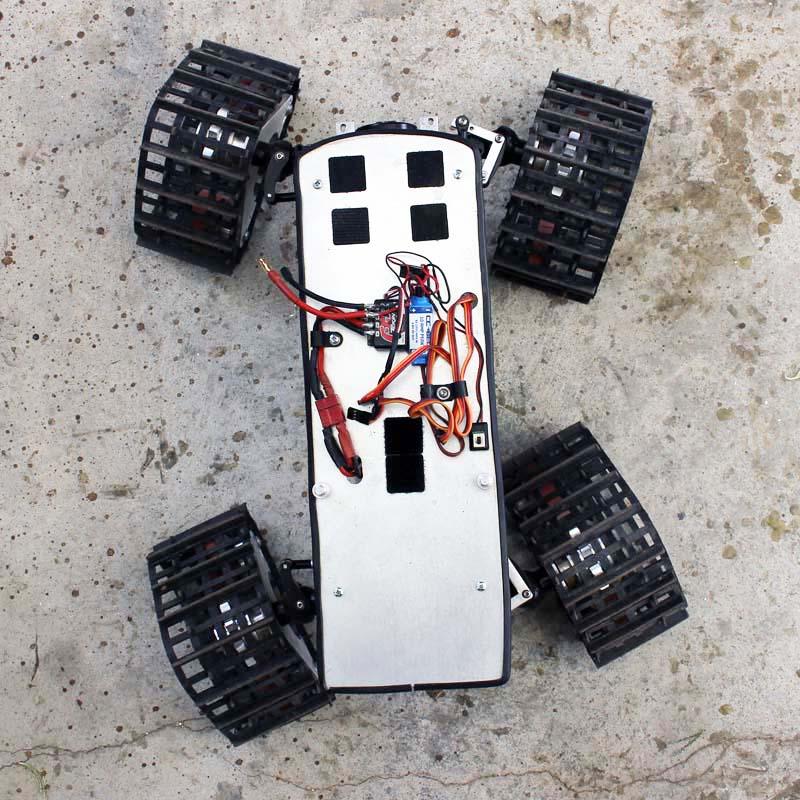

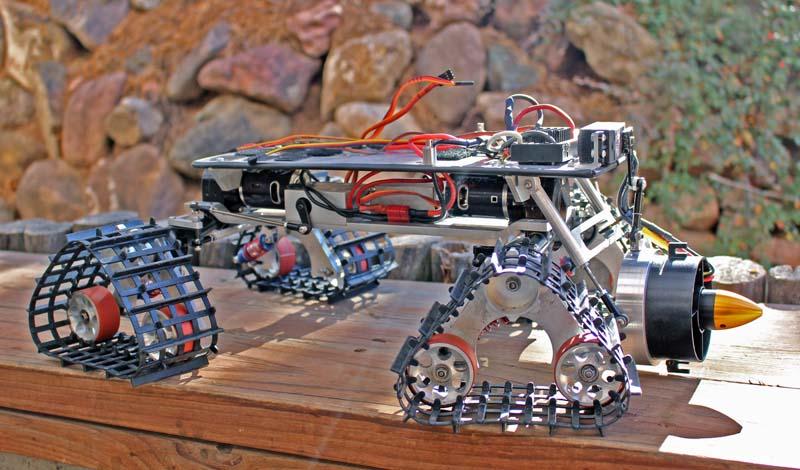

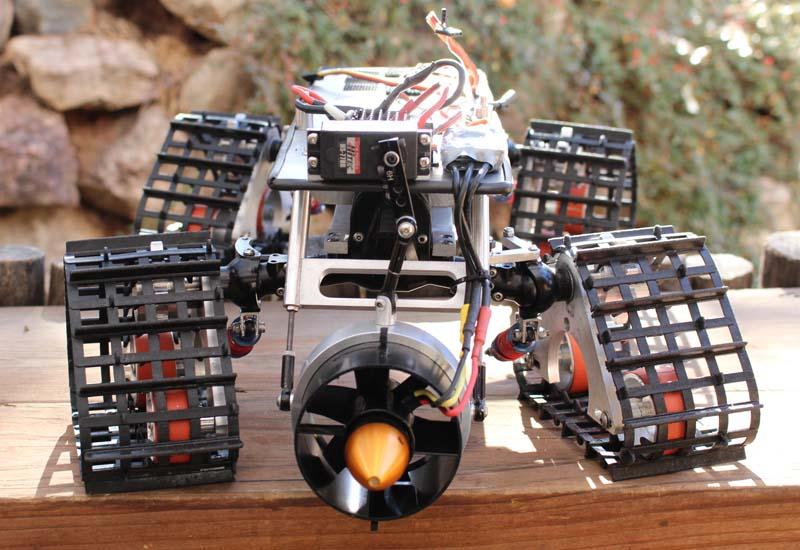

I converted the original Tall Boy chassis to 4 wheel drive by swapping out the moa rear straight axle for a second front axle. The steering arms are mounted on the hubs and a single servo controls the front and back steering. Now has a small turning radius. Also added shocks to each wheel plate. This allows the wheel plate to rotate front to back allowing the lower wheels to follow the terrain. Add a 70mm fan jet snowblower attachment. The fan jet can be raise via a servo.
